TDM5 - How to Add a Website

Introduction

TDM5 allows you to create your own designs using elements. Each element has configurable properties, giving you the flexibility to create content based on your needs.

This article explains how to add a website element. Additional guides for other elements can be found in our knowledge base.

Requirements

To add a website to your page, you need the following:

• Access to Designer > Pages with permission to create or edit a page.

How to add a website

1. Log in to your TDM5 environment.

2. Select Designer.


3. Select the menu option Pages.


4. Open an existing page by clicking Edit,


   or create a new page by clicking Add new page.


5. You will now be taken to the content editor, where you can design your page.

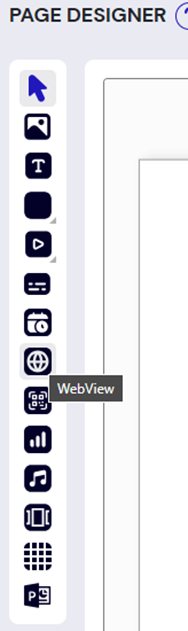

6. Select the WebView element from the menu on the left side of the screen.

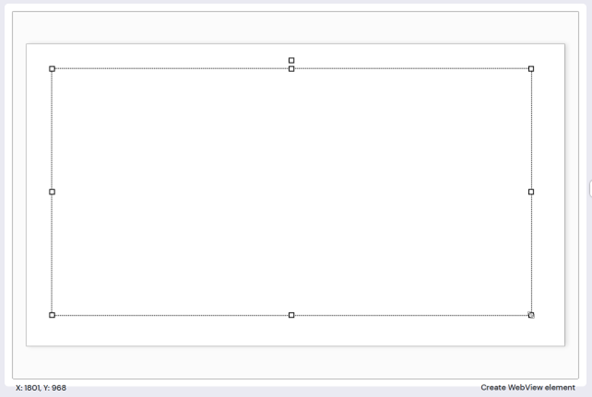

7. Draw a frame in the template editor by clicking. Adjust the size of the element as needed, then click again to confirm.

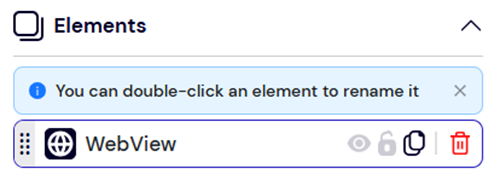

8. Configure the element properties on the right side of the page: To rename the element, double-click it in the Elements section.



9. In the Element layout section, adjust the position, size, and rotation.


   Rotation can also be set with the dot at the top of the element.






10. In the Colors & effects section, adjust opacity to make the element transparent if needed.

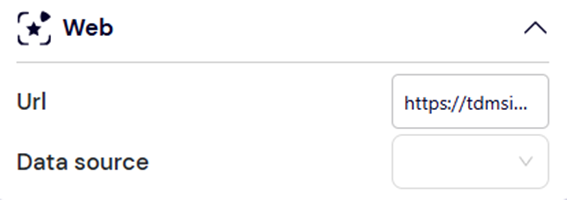

11. In the Web section, enter the URL of the website you want to display.

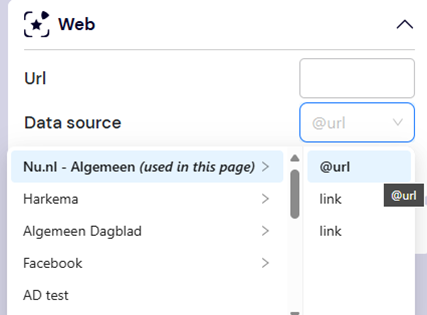

12. Optionally, link the element to a data source containing a URL value. The element will then display the link configured in the data source.



13. In the Touch section, configure content that will be displayed when someone presses the element (useful for touchscreen devices).



Once completed, you have successfully added a website element. You can continue designing and add additional elements as needed.
