Introduction

TDM5 offers the ability to create your own designs, this can be done using elements. Each element has its own properties which can be configured. With these elements you have the ability to create content based on your needs.

This article will describe how a slideshow element can be added. Additional articles regarding elements can be found in our knowledge base.

Requirements

If you want to import demo templates you need to meet the following requirements:

• Have access to: Designer > Pages and be able to create or edit a page.

How To add a slideshow

1. Login to your TDM5 environment.

2. Select “Designer”.


3. Select the menu option called “Pages”.


4. Open an existing page by selecting ‘Edit’ or create a new page using the ‘Add new page’ button Edit existing page:


   Add new page:

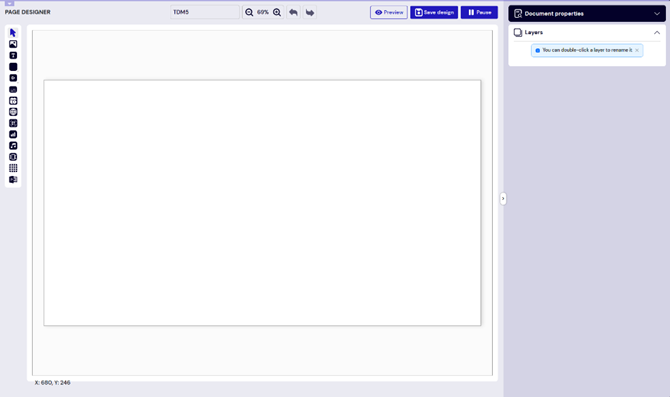

5. You will be navigated to the content editor, from here you can design your page.

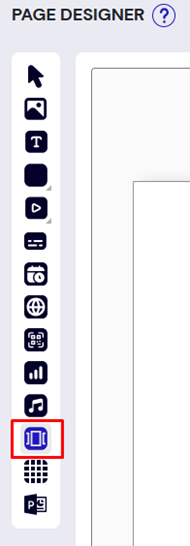

6. Select the ‘Slideshow’ element, this can be done by selecting it in the menu on the left side of the screen.

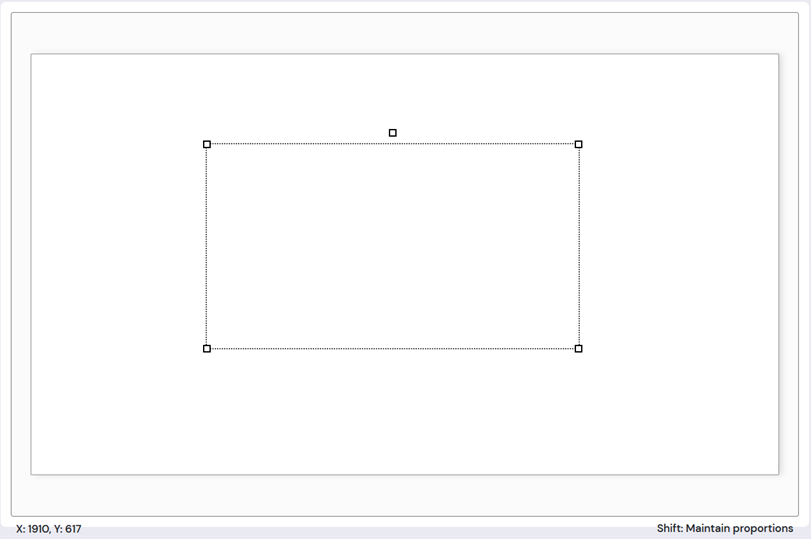

7. You can now draw a frame by clicking in the template editor, once this has been done you can decide the size of the element. Click again once you are happy with the size of the element.

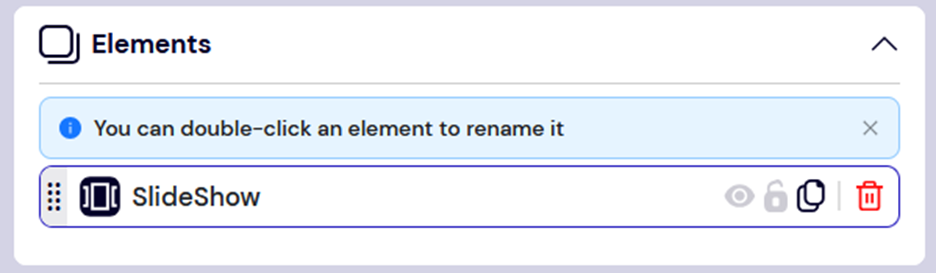

8. On the right side of the page you can configure the properties of the element. To change the name double click the element in the ‘Elements’ section.

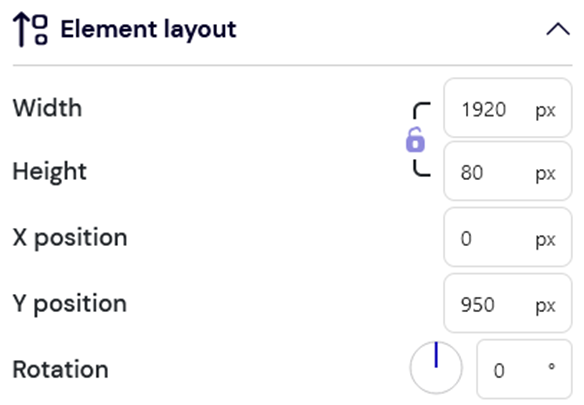

9. In the ‘Element layout’ section you can adjust the position of the element and set rotation in case needed.

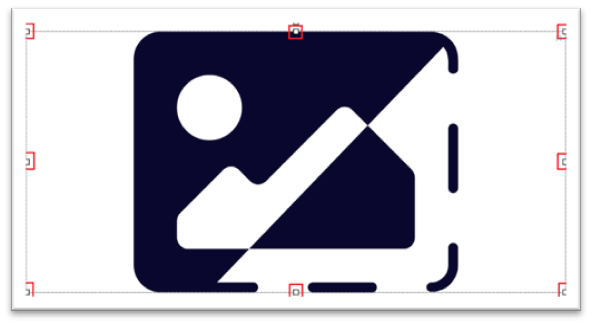

   The size can also be changed by selecting the border of the element.

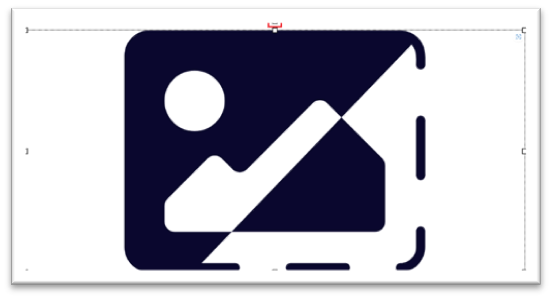

   Rotation can be set with the dot located at the top of the element.

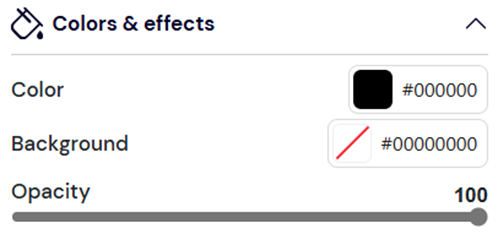

10. In the ‘Colors & effects’ section you have the ability to set ‘Opacity’ to make the text transparent. Next to this you have the ability to configure a color for the text and the background.




11. In the ‘Slide section you have the ability to select the images you want to add to the slideshow by clicking on ‘Select images'. It’s also possible to connect to a data source and the slideshow will automatically display all images from that source. Select a data source and a value. The slideshow will go through the data source and display all images within that value.

    If you want to choose your own images, click on ‘Select images'. This will bring you to the 'Media' Library. Here you can select the desired images or upload new ones. You can also choose either Dropbox or OneDrive and select images from there.



    Once you have finished this step you have successfully added a slideshow element. It is possible to continue with your design and add additional elements if needed.
