Introduction

TDM4 has some network requirements which should be met, without this we cannot guarantee the working of TDM4.
This guide explains the network requirements for the usage of TDM4 and also explains the workflow of the communication used for TDM4.

Requirements

If you want to use TDM4 you need to meet the following network requirements:

• Allow traffic to the following IP range: 5.255.95.128/27, or 5.255.95.132 till 5.255.95.158
• Allow traffic through port 80 and 443 for the IP range mentioned above

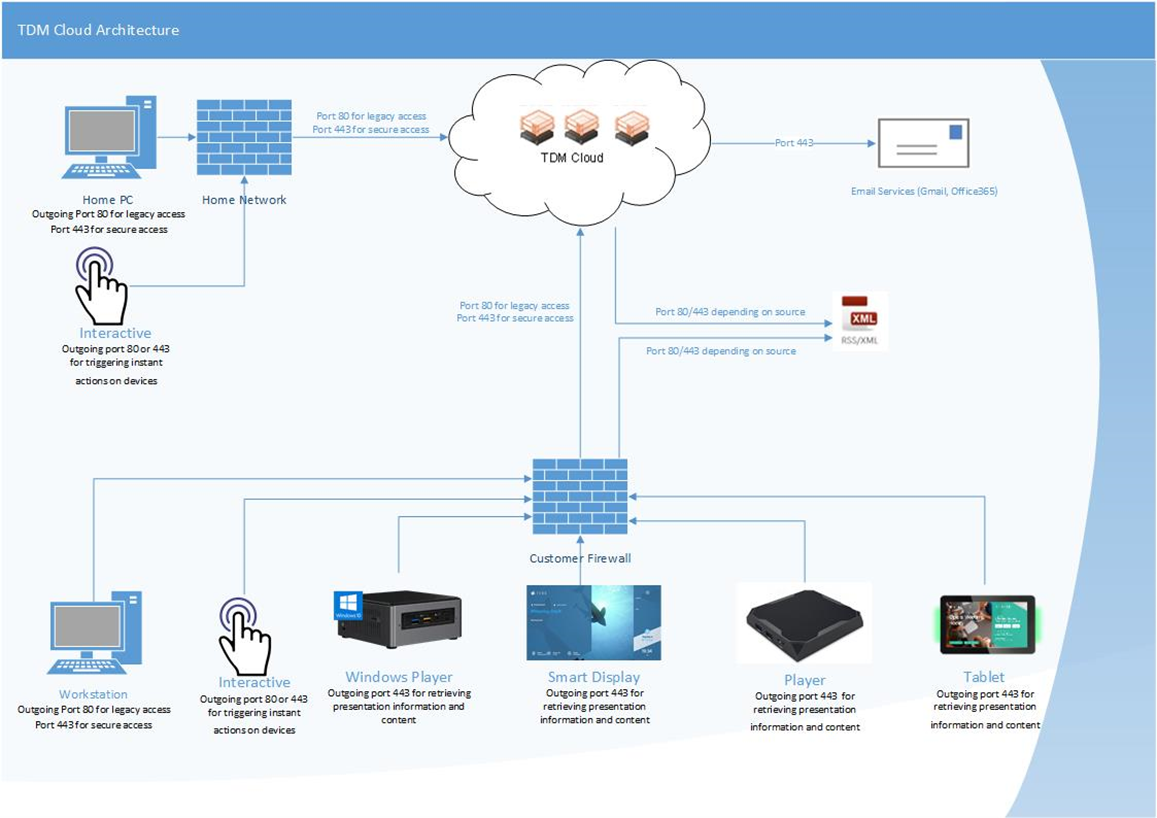

TDM4 - Network diagram

Below you will find the TDM4 network diagram, this explains the traffic flow used for TDM4.
