Introduction

TDM5 has some network requirements which should be met, without this we cannot guarantee the working of TDM5. This guide explains the network requirements for the usage of TDM5 and also explains the workflow of the communication used for TDM5.

Requirements

If you want to use TDM5 you need to meet the following network requirements:

• Allow traffic to the following IP range: 5.255.95.128/27, or 5.255.95.132 till 5.255.95.158
  Or allow traffic to the following hostnames: *.tdmsignage.com

• Allow traffic through port 80 and 443, this is required to be able to reach the TDM5 web interface.

• Allow traffic through port 15676, this is required for devices to be able to communicate with our RabbitMQ host. This port is also used for the content preview and device status in the web interface.

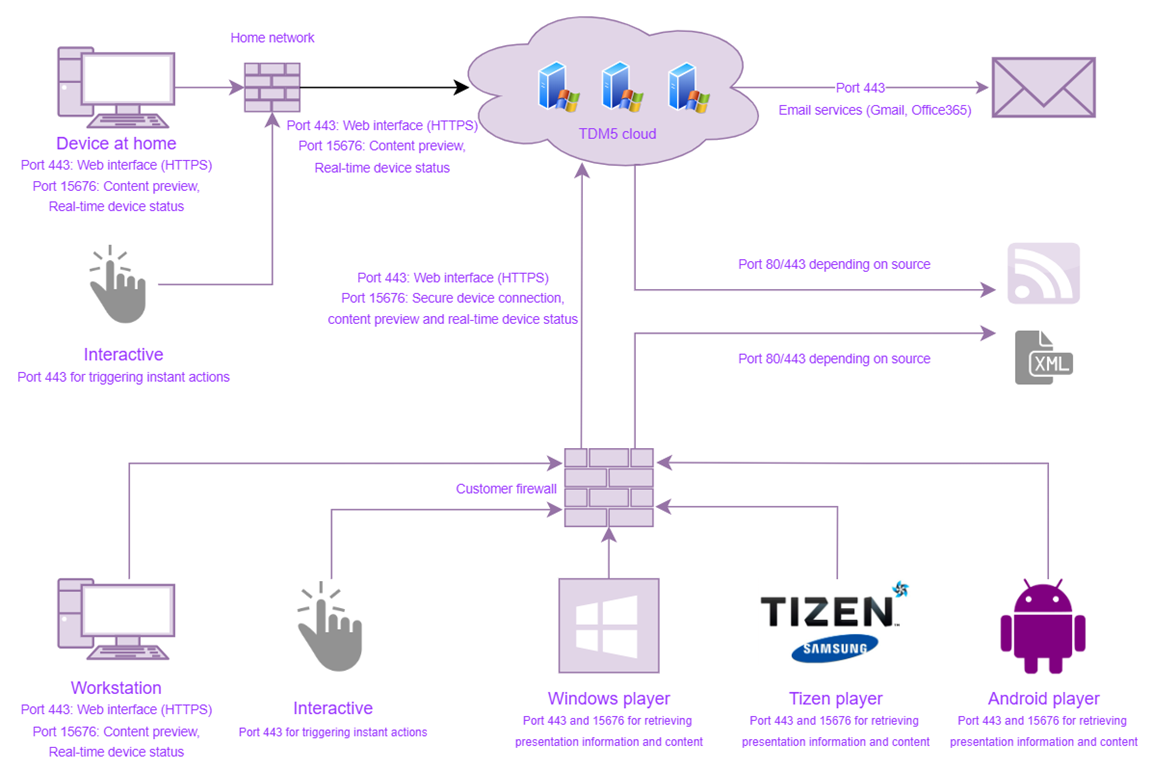

TDM5 - Network diagram

Below you will find the TDM5 network diagram, this explains the traffic flow used for TDM5.
